3. Hello, little turtles!

There are many modules in Python that provide very powerful features that we can use in our own programs. Some of these can send email, or fetch web pages. The one we’ll look at in this chapter allows us to create turtles and get them to draw shapes and patterns.

The turtles are fun, but the real purpose of the chapter is to teach ourselves a little more Python, and to develop our theme of computational thinking, or thinking like a computer scientist. Most of the Python covered here will be explored in more depth later.

3.1. Our first turtle program

Let’s try a couple of lines in the Python shell to create a new turtle and start drawing a rectangle. (We’ll call the variable that refers to our first turtle alex, but you can choose another name if you follow the naming rules from the previous chapter).

>>> import turtle
>>> turtle.setup(800, 600)
>>> alex = turtle.Turtle()
>>> alex.forward(300)
>>> alex.left(90)
>>> alex.forward(200)
>>> exit()

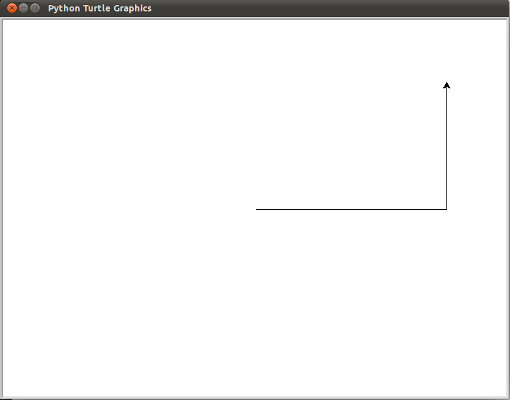

After the second command, a new window pops up. The third command places a cursor – affectionately called a turtle in this module – which we have named alex.

The next three lines move alex forward, turn him left, and move him forward again, completing two sides of a rectangle. After these commands have been entered, you will see a window that looks like this:

Here are a couple of things you’ll need to understand about this program.

• The first line tells Python to load a module named turtle. That module brings us two new types that we can use: the Turtle type, and the Screen type. The dot notation turtle.Turtle means “The Turtle type that is defined within the turtle module”. (Remember that Python is case sensitive, so the module name, with a lowercase t, is different from the type Turtle.)
• We then create and open what it calls a screen (we would perfer to call it a window), which we assign to variable wn. Every window contains a canvas, which is the area inside the window on which we can draw.
• In line 3 we create a turtle. The variable alex is made to refer to this turtle. These first three lines set us up, ready for doing some useful things.
• In lines 4-6, we instruct the object alex to move, and to turn. We do this by invoking, or activating, alex’s methods — these are the instructions that all turtles know how to respond to.
• The last line plays a part too: the wn variable refers to the active window. When we invoke its exitonclick method, it pauses the execution of the program, and waits for the user to click the mouse in somewhere the window. When this click event occurs, the response is to close the turtle window and exit (stop execution of) the Python program.

Go ahead and click on the window after entering the last command.

An object can have various methods — things it can do — and it can also have attributes — (sometimes called properties). For example, each turtle has a color attribute. The method invocation alex.color("red") will make alex red, and drawing will be red too.

The color of the turtle, the width of its pen, the position of the turtle within the window, which way it is facing, and so on are all part of its current state. Similarly, the window object has a background color, and some text in the title bar, and a size and position on the screen. These are all part of the state of the window object.

Quite a number of methods exist that allow us to modify the turtle and the window objects. We’ll just show a couple. We’ve only commented those lines that are different from the previous example (and we’ve used a different variable name for this turtle). Also, we’ll put this example in a script named tess.py, since it is getting a bit too long to type over and over into the Python shell:

import turtle

turtle.setup(800, 600)      # set the window size to 800 by 600 pixels
wn = turtle.Screen()        # set wn to the window object
wn.bgcolor("lightgreen")    # set the window background color
wn.title("Hello, Tess!")    # set the window title

tess = turtle.Turtle()
tess.color("blue")           # make tess blue
tess.pensize(3)              # set the width of her pen

tess.forward(300)
tess.left(120)
tess.forward(300)

wn.exitonclick()

Running this program will create a graphics window that looks like this:

When we run this program, this new window pops up, and will remain on the screen until we click on it.

Extend this program ...

1. Modify this program so that before it creates the window, it prompts the user to enter the desired background color. It should store the user’s responses in a variable, and modify the color of the window according to the user’s wishes. (Hint: you can find a list of permitted color names at http://www.tcl.tk/man/tcl8.4/TkCmd/colors.htm. It includes some quite unusual ones, like “peach puff” and “HotPink”.)
2. Do similar changes to allow the user, at runtime, to set tess’ color.
3. Do the same for the width of tess’ pen. Hint: your dialog with the user will return a string, but tess’ pensize method expects its argument to be an int. So you’ll need to convert the string to an int before you pass it to pensize.

3.2. Instances — a herd of turtles

Just like we can have many different integers in a program, we can have many turtles. Each of them is called an instance. Each instance has its own attributes and methods — so alex might draw with a thin black pen and be at some position, while tess might be going in her own direction with a fat pink pen. So here is what happens when alex completes his rectangle, and tess completes her triangle, in a program named tess_n_alex.py:

import turtle

# setup the window and its attributes
turtle.setup(800, 600)
wn = turtle.Screen()
wn.bgcolor("lightgreen")
wn.title("Tess & Alex")

# instantiate (create) tess and set her attributes
tess = turtle.Turtle()
tess.color("hotpink")
tess.pensize(5)

# instantiate alex
alex = turtle.Turtle()

# draw an equilateral triangle with tess
tess.forward(320)
tess.left(120)
tess.forward(320)
tess.left(120)
tess.forward(320)
tess.left(120)

# turn tess around and move her away from the origin
tess.right(180)
tess.forward(320)

# make alex draw a square
alex.forward(200)
alex.left(90)
alex.forward(200)
alex.left(90)
alex.forward(200)
alex.left(90)
alex.forward(200)

wn.exitonclick()

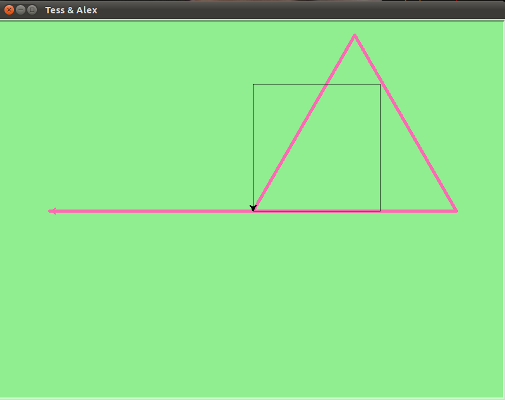

which generates this when run:

Here are some How to think like a computer scientist observations:

• There are 360 degrees in a full circle. If you add up all the turns that a turtle makes, no matter what steps occurred between the turns, you can easily figure out if they add up to some multiple of 360. This should convince you that alex is facing in exactly the same direction as he was when he was first created. (Geometry conventions have 0 degrees facing East, and that is the case here too.)
• We could have left out the last turn for alex, but that would not have been as satisfying. If you’re asked to draw a closed shape like a square or a rectangle, it is a good idea to complete all the turns and to leave the turtle back where it started, facing the same direction as it started in. This makes reasoning about the program and composing chunks of code into bigger programs easier for us humans.
• We did the same with tess: she drew her triangle, and turned through a full 360 degress. Then we turned her around and moved her aside. Even the blank line 23 is a hint about how the programmer’s mental chunking is working: in big terms, tess’ movements were chunked as “draw the triangle” (lines 17-22) and then “move away from the origin” (lines 25 and 26).
• One of the key uses for comments is to record your mental chunking, and big ideas. They’re not always explicit in the code.
• And, uh-huh, two turtles may not be enough for a herd, but you get the idea!

3.3. The for loop

When we drew the square, it was quite tedious. We had to move then turn, move then turn, etc. etc., four times. If we were drawing a hexagon, or an octogon, or a polygon with 42 sides, it would have been a nightmare.

So a basic building block of all programs is to be able to repeat some code, over and over again.

Python’s for loop solves this for us.

Let’s say we have some friends, and we’d like to send them each an email inviting them to our party. Since we don’t know how to send email yet, for the moment we’ll just print a message for each friend:

for f in ["Joe", "Amy", "Brad", "Angelina", "Zuki", "Thandi", "Paris"]:
    invitation = "Hi " + f + ".  Please come to my party on Saturday!"
    print(invitation)

When we run this, the output looks like this:

Hi Joe.  Please come to my party on Saturday!
Hi Amy.  Please come to my party on Saturday!
Hi Brad.  Please come to my party on Saturday!
Hi Angelina.  Please come to my party on Saturday!
Hi Zuki.  Please come to my party on Saturday!
Hi Thandi.  Please come to my party on Saturday!
Hi Paris.  Please come to my party on Saturday!

Study this example closely and note the following things:

• ["Joe", "Amy", "Brad", "Angelina", "Zuki", "Thandi", "Paris"] is a new data type, called a list, that can hold a collection of values. We will study lists more formally in a later chapter, but for now you just need to know that they hold a collection of values seperated by commas and enclosed in square brackets ([, ]).
• f in this for statement is called the loop variable. It gets assigned to each value in the list, one at a time and in the order in which they occur in the list.
• Lines 2 and 3 are the loop body. The loop body is always indented. The indentation determines exactly what statements are “in the loop”.
• On each iteration or pass of the loop, first a check is done to see if there are still more items to be processed. If there are none left (this is called the terminating condition of the loop), the loop has finished. Program execution continues at the next statement after the loop body.
• If there are items still to be processed, the loop variable is updated to refer to the next item in the list. This means, in this case, that the loop body is executed here 7 times, and each time f will refer to a different friend.
• At the end of each execution of the body of the loop, Python returns to the for statement, to see if there are more items to be handled.

3.4. Flow of Execution of the for loop

Flowchart of a for loop

As a program executes, the interpreter always keeps track of which statement is about to be executed. We call this the control flow, of the flow of execution of the program. When humans execute programs, they often use their finger to point to each statement in turn. So you could think of control flow as “Python’s moving finger”.

Control flow until now has been strictly top to bottom, one statement at a time. The for loop changes this.

Control flow is often easy to visualize and understand if we draw a flowchart. This shows the exact steps and logic of how the for statement executes.

3.5. The loop simplifies our turtle program

To draw a square we’d like to do the same thing four times — move the turtle, and turn. We previously used 8 lines to have alex draw the four sides of a square. This does exactly the same, but using just three lines:

for i in [0, 1, 2, 3]:
    alex.forward(250)
    alex.left(90)

While saving some lines of code might be convenient, it is not the big deal here. What is much more important is that we’ve found a repeating pattern of statements, and reorganized our program to repeat the pattern. Finding the chunks and somehow getting our programs arranged around those chunks is a vital skill in How to think like a computer scientist.

The values in the list, [0, 1, 2, 3], were provided to make the loop body execute 4 times. We could have used any four values, but these are the conventional ones to use. In fact, they are so popular that Python gives us a special built-in range function for this purpose.

>>> for i in range(4):
...     print(i)
...
0
1
2
3
>>>

Note that:

• range creates an object that can deliver a sequence of values to the for loop.
• Computer scientists like to count from 0! When you pass range a single integer argument, the values assigned to the loop variable start at 0, and go up by one to one less than the argument value.

We can also create a list of numbers by passing the output of a call to the range function to the the list type function:

>>> list(range(6))
[0, 1, 2, 3, 4, 5]
>>> list(range(10))
[0, 1, 2, 3, 4, 5, 6, 7, 8, 9]

Try this...

What does list(range(0)) return? What about list(range(1))?

Our little trick earlier to make sure that alex did the final turn to complete 360 degrees has paid off: if we had not done that, then we would not have been able to use a loop for the fourth side of the square. It would have become a “special case”, different from the other sides. When possible, we’d much prefer to make our code fit a general pattern, rather than have to create a special case.

So to repeat something four times, a good Python programmer would do this:

for i in range(4):
    alex.forward(250)
    alex.left(90)

By now you should be able to see how to change our previous program so that tess can also use a for loop to draw her equilateral triangle.

What would happen if we made this change ...

for clr in ["yellow", "red", "purple", "blue"]:
    alex.color(clr)
    alex.forward(250)
    alex.left(90)

A variable can also be assigned a value that is a list. So lists can also be used in situations other than the for loop. The code above could be rewritten like this:

colors = ["yellow", "red", "purple", "blue"]
for clr in colors:
    alex.color(clr)
    alex.forward(250)
    alex.left(90)

3.6. A few more turtle methods and tricks

Turtle methods can use negative angles or distances. So tess.foward(-100) will move tess backwards, and tess.left(-30) turns her to the right. Additionally, because there are 360 degrees in a circle, turning 30 to the left will get you facing in the same direction as turning 330 to the right! (The on-screen animation will differ, though — you will be able to tell if tess is turning clockwise or counter-clockwise!)

This suggests that we don’t need both a left and a right turn method — we could be minimalists, and just have one method. There is also a backward method. (If you are very nerdy, you might enjoy saying alex.backward(-100) to move alex forward!)

Part of thinking like a scientist is to understand more of the structure and rich relationships in your field. So revising a few basic facts about geometry and number lines, like we’re done here is a good start if we’re going to play with turtles.

A turtle’s pen can be picked up or put down. This allows us to move a turtle to a different place without drawing a line. The methods are

alex.penup()
alex.forward(100)     # this moves alex, but no line is drawn
alex.pendown()

Every turtle can have its own shape. The ones available “out of the box” are arrow, blank, circle, classic, square, triangle, turtle.

alex.shape("turtle")

You can speed up or slow down the turtle’s animation speed. (Animation controls how quickly the turtle turns and moves forward). Speed settings can be set between 1 (slowest) to 10 (fastest). But if you set the speed to 0, it has a special meaning — turn off animation and go as fast as possible.

alex.speed(10)

A turtle can “stamp” its footprint onto the canvas, and this will remain after the turtle has moved somewhere else. Stamping works, even when the pen is up.

Let’s do an example that shows off some of these new features in spiral.py:

import turtle

turtle.setup(800, 600)
wn = turtle.Screen()
wn.bgcolor("lightgreen")
wn.title("Tess's Spiral")

tess = turtle.Turtle()
tess.shape("turtle")
tess.color("blue")

tess.penup()                    # this is new
size = 20
for i in range(30):
    tess.stamp()                # leave an impression on the canvas
    size = size + 3             # increase the size on every iteration
    tess.forward(size)          # move tess along
    tess.right(24)              # and turn her

wn.exitonclick()

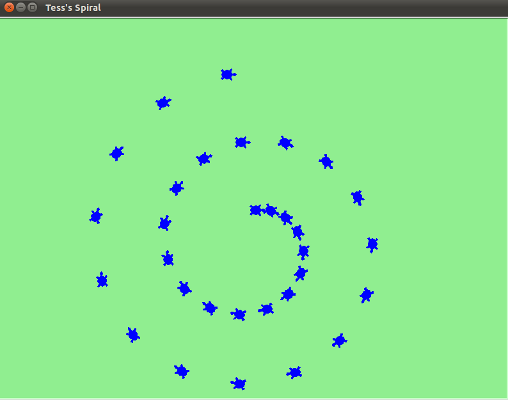

which generates this when run:

Be careful now: all except one of the shapes you see on the screen here are footprints created by stamp. But the program still only has one turtle instance — can you figure out which one is the real tess? (Hint: if you’re not sure, write a new line of code after the for loop to change tess’ color, or to put her pen down and draw a line, or to change her shape, etc.)

3.7. Glossary

attribute

Some state or value that belongs to a particular object. For example, tess has a color.

canvas

A surface within a window where drawing takes place.

control flow

See flow of execution in the next chapter.

for loop

A statement in Python for convenient repetition of statements in the body of the loop.

list

A Python data type that contains a collection of values. Lists in Python are enclosed in square brackets ([, ]) and elements in the list are seperated by commas (,).

loop body

Any number of statements nested inside a loop. The nesting is indicated by the fact that the statements are indented under the for loop statement.

loop variable

A variable used as part of a for loop. It is assigned a different value on each iteration of the loop, and is used as part of the terminating condition of the loop,

instance

An object that belongs to a class. tess and alex are different instances of the class Turtle

method

A function that is attached to an object. Invoking or activating the method causes the object to respond in some way, e.g. forward is the method when we say tess.forward(100).

invoke

An object has methods. We use the verb invoke to mean activate the method. Invoking a method is done by putting parentheses after the method name, with some possible arguments. So wn.exitonclick() is an invocation of the exitonclick method.

module

A file containing Python definitions and statements intended for use in other Python programs. The contents of a module are made available to the other program by using the import statement.

object

A “thing” to which a variable can refer. This could be a screen window, or one of the turtles you have created.

range

A built-in function in Python for generating sequences of integers. It is especially useful when we need to write a for loop that executes a fixed number of times.

terminating condition

A condition that occurs which causes a loop to stop repeating its body. In the for loops we saw in this chapter, the terminating condition has been when there are no more elements to assign to the loop variable.

3.8. Exercises

1. Write a program that prints We like Python's turtles! 100 times.

2. The vocabularly used with software objects was inspired by objects in the real world. Let’s reverse the thought process, and describe a real world object, your cellphone, using the same vocabularly we use with software objects.

   Give three attributes of your cellphone. Give three methods of your cellphone.

3. Create a list named months that contains 12 strings with the names of the months of the year in the order in which they occur.

4. Write a program that uses a for loop to loop over months to print

   One of the months of the year is January

   One of the months of the year is February

   ... etc

5. Assume you have the assignment xs = [12, 10, 32, 3, 66, 17, 42, 99, 20]

   1. Write a loop that prints each of the numbers on a new line.
   2. Write a loop that prints each number and its square on a new line.

   Extra challenges (for really smart students) ...

   3. Write a loop that adds all the numbers from the list into a variable called total. You should set the total variable to have the value 0 before you start adding them up, and print the value in total after the loop has completed.
   4. Print the product of all the numbers in the list. (product means all multiplied together)

6. Use for loops to make a turtle draw these regular polygons (regular means all sides the same lengths, all angles the same):

   • An equilateral triangle
   • A square
   • A hexagon (six sides)
   • An octagon (eight sides)

7. A drunk student makes a random turn and then takes 100 steps forward, makes another random turn, takes another 100 steps, turns another random amount, etc. A social science student records the angle of each turn before the next 100 steps are taken. Her experimental data is [160, -43, 270, -97, -43, 200, -940, 17, -86]. (Positive angles are counter-clockwise.) Use a turtle to draw the path taken by our drunk friend.

8. Enhance your program above to also tell us what the drunk student’s heading is after he has finished stumbling around. (Assume he begins at heading 0).

9. If you were going to draw a regular polygon with 18 sides, what angle would you need to turn the turtle at each corner?

10. At the interactive prompt, anticipate what each of the following lines will do, and then record what happens. Score yourself, giving yourself one point for each one you anticipate correctly

    >>> import turtle
    >>> wn = turtle.Screen()
    >>> tess = turtle.Turtle()
    >>> tess.right(90)
    >>> tess.left(3600)
    >>> tess.right(-90)
    >>> tess.speed(10)
    >>> tess.left(3600)
    >>> tess.speed(0)
    >>> tess.left(3645)
    >>> tess.forward(-100)


11. Write a program to draw a shape like this:



    Hints

    • Try this on a piece of paper, moving and turning your cellphone as if it was a turtle. Watch how many complete rotations your cellphone makes before you complete the star. Since each full rotation is 360 degrees, you can figure out the total number of degrees that your phone was rotated through. If you divide that by 5, because there are five points to the star, you’ll know how many degrees to turn the turtle at each point.
    • You can hide a turtle behind its invisibility cloak if you don’t want it shown. It will still draw its lines if its pen is down. The method is invoked as tess.hideturtle(). tess.showturtle() makes the turtle visible again.

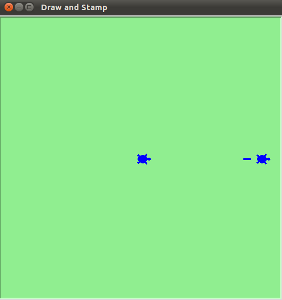

12. Write a program that will draw a screen that looks something like this:



    Hint

    Use a combination of the penup, forward, pendown, stamp, and backward turtle methods to get this to work.

    The turtle should end up back where it started when your program finishes.

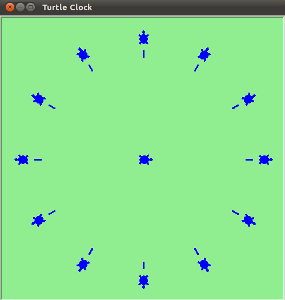

13. Now build on your solution from the previous exercise to Write a program to draw a face of a clock that looks something like this:



14. Create a turtle, and assign it to a variable. When you ask for its type, what do you get?

15. What is the collective noun for turtles? (Hint: they don’t come in herds.)
