7.18. Strongly Connected Components

For the remainder of this chapter we will turn our attention to some extremely large graphs. The graphs we will use to study some additional algorithms are the graphs produced by the connections between hosts on the Internet and the links between web pages. We will begin with web pages.

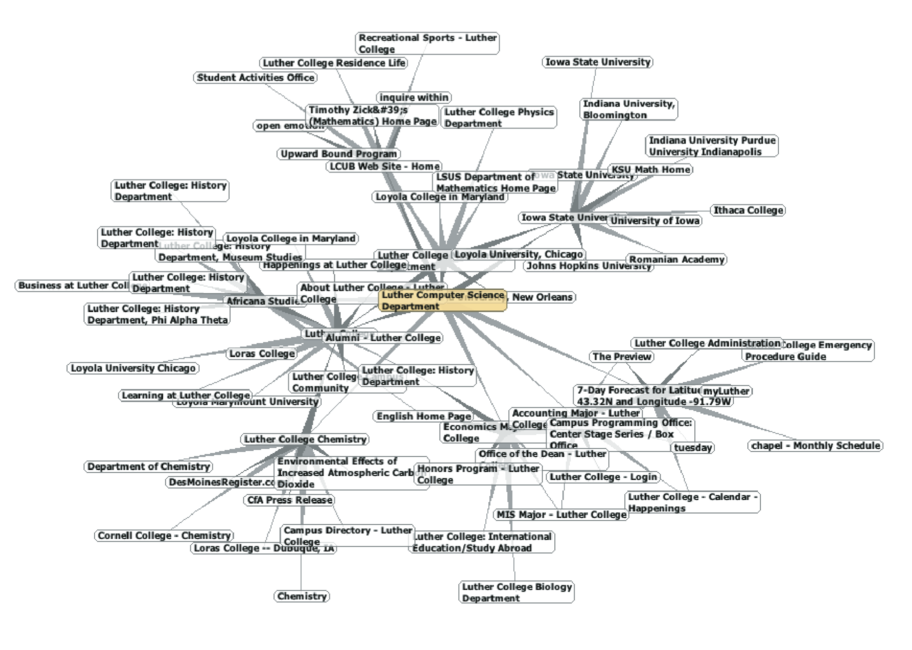

Search engines like Google and Bing exploit the fact that the pages on the web form a very large directed graph. To transform the World Wide Web into a graph, we will treat a page as a vertex, and the hyperlinks on the page as edges connecting one vertex to another. Figure 30 shows a very small part of the graph produced by following the links from one page to the next, beginning at Luther College’s Computer Science home page. Of course, this graph could be huge, so we have limited it to web sites that are no more than 10 links away from the CS home page.

../_images/cshome.png

Figure 30: The Graph Produced by Links from the Luther Computer Science Home Page

If you study the graph in Figure 30 you might make some interesting observations. First you might notice that many of the other web sites on the graph are other Luther College web sites. Second, you might notice that there are several links to other colleges in Iowa. Third, you might notice that there are several links to other liberal arts colleges. You might conclude from this that there is some underlying structure to the web that clusters together web sites that are similar on some level.

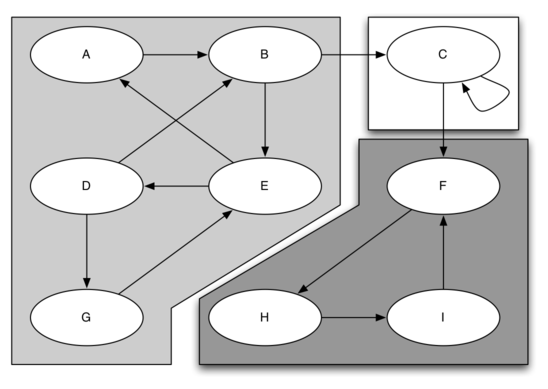

One graph algorithm that can help find clusters of highly interconnected vertices in a graph is called the strongly connected components algorithm (SCC). We formally define a strongly connected component, \(C\), of a graph \(G\), as the largest subset of vertices \(C \subset V\) such that for every pair of vertices \(v, w \in C\) we have a path from \(v\) to \(w\) and a path from \(w\) to \(v\). Figure 27 shows a simple graph with three strongly connected components. The strongly connected components are identified by the different shaded areas.

../_images/scc1.png

Figure 31: A Directed Graph with Three Strongly Connected Components

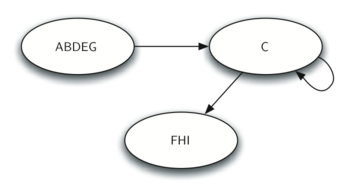

Once the strongly connected components have been identified we can show a simplified view of the graph by combining all the vertices in one strongly connected component into a single larger vertex. The simplified version of the graph in Figure 31 is shown in Figure 32.

../_images/scc2.png

Figure 32: The Reduced Graph

Once again we will see that we can create a very powerful and efficient algorithm by making use of a depth first search. Before we tackle the main SCC algorithm we must look at one other definition. The transposition of a graph \(G\) is defined as the graph \(G^T\) where all the edges in the graph have been reversed. That is, if there is a directed edge from node A to node B in the original graph then \(G^T\) will contain and edge from node B to node A. Figure 33 and Figure 34 show a simple graph and its transposition.

../_images/transpose1.png

Figure 33: A Graph \(G\)

../_images/transpose2.png

Figure 34: Its Transpose \(G^T\)

Look at the figures again. Notice that the graph in Figure 33 has two strongly connected components. Now look at Figure 34. Notice that it has the same two strongly connected components.

We can now describe the algorithm to compute the strongly connected components for a graph.

  1. Call dfs for the graph \(G\) to compute the finish times for each vertex.
  2. Compute \(G^T\).
  3. Call dfs for the graph \(G^T\) but in the main loop of DFS explore each vertex in decreasing order of finish time.
  4. Each tree in the forest computed in step 3 is a strongly connected component. Output the vertex ids for each vertex in each tree in the forest to identify the component.

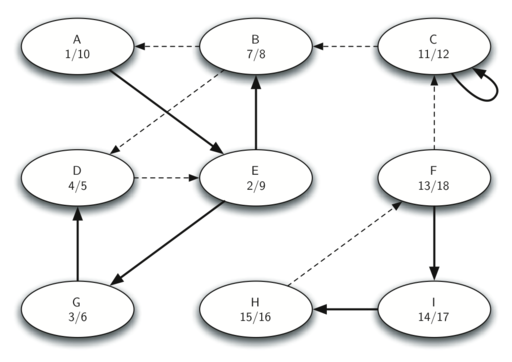

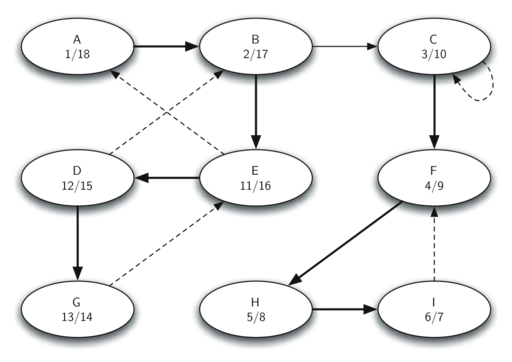

Let’s trace the operation of the steps described above on the example graph in Figure 31. Figure 35 shows the starting and finishing times computed for the original graph by the DFS algorithm. Figure 36 shows the starting and finishing times computed by running DFS on the transposed graph.

../_images/scc1a.png

Figure 35: Finishing times for the original graph \(G\)

../_images/scc1b.png

Figure 36: Finishing times for \(G^T\)

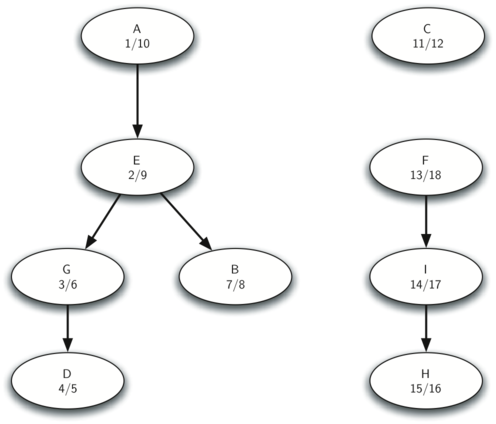

Finally, Figure 37 shows the forest of three trees produced in step 3 of the strongly connected component algorithm. You will notice that we do not provide you with the Python code for the SCC algorithm, we leave writing this program as an exercise.

../_images/sccforest.png

Figure 37: Strongly Connected Components
